current location：home page > product > Side channel Blowers > RBG Single Stage Side Channel Blowers > Airhank RBG 610 003B
Input voltage:
Rated power:
Maximum flow:
Power frequency:
50 Hz
Rated current:
12.5△/7.2Y A
Vacuum suction:
-270 mbar
Rated blowing force:
310 mbar
Motor speed:
2800 min-1
In and out caliber:
G2
Weight:
32 Kg
Noise（about）:
67 dB(A)

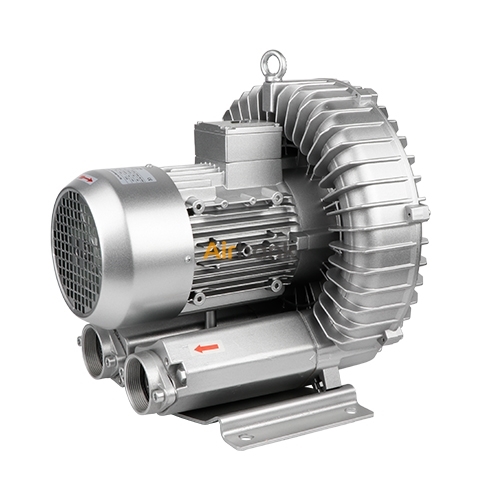

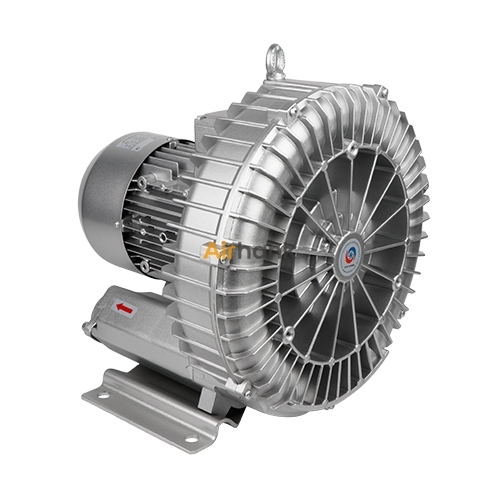

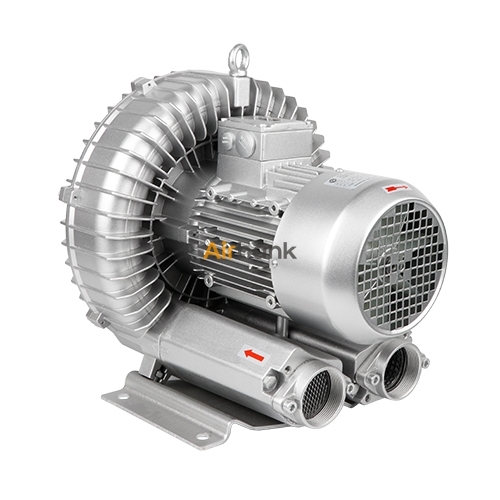

Airhank RBG 610 003B
Data download
Data download
Characteristic curve
Performance data
| Technical parameter | RBG 610 003B | |
|---|---|---|
| Maximum flow | m3/h | 270 |
| Vacuum suction | mbar | -270 |
| Rated blowing force | mbar | 310 |
| Frequency | Hz | 50 |
| Voltage | V | △200-240/Y345-415 |
| Current consumption | A | 12.5△/7.2Y |
| Power | kW | 3 |
| Motor speed | min-1 | 2800 |
| Weight | Kg | 32 |
| Noise value | dB (A) | 67 |
Technical drawings
