current location：home page > product > Side channel Blowers > RBG Two Stage Side Channel Blowers > Airhank RBG 920 020C
Input voltage:
Rated power:
Maximum flow:
Power frequency:
50 Hz
Rated current:
40.0Δ/23.0Y A
Vacuum suction:
-440 mbar
Rated blowing force:
500 mbar
Motor speed:
2800 min-1
In and out caliber:
G4
Weight:
140 Kg
Noise（about）:
74 dB(A)

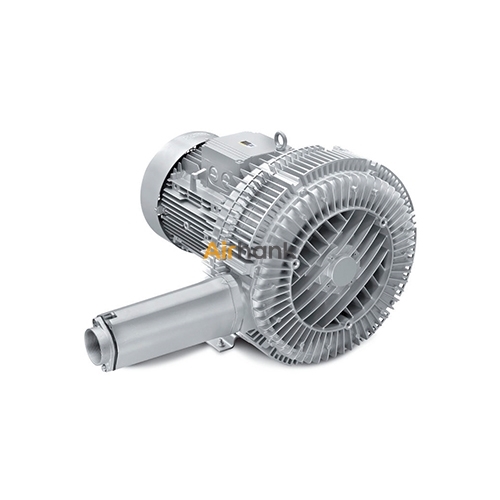

Airhank RBG 920 020C
Data download
Data download
Characteristic curve
Performance data
| Technical parameter | RBG 920 020C | |
|---|---|---|
| Maximum flow | m3/h | 1110 |
| Vacuum suction | mbar | -440 |
| Rated blowing force | mbar | 500 |
| Frequency | Hz | 50 |
| Voltage | V | △345-415/Y600-720 |
| Current consumption | A | 40.0△/23.0Y |
| Power | kW | 20 |
| Motor speed | min-1 | 2800 |
| Weight | Kg | 140 |
| Noise value | dB (A) | 74 |
Technical drawings
