current location：home page > product > Side channel Blowers > RBG Two Stage Side Channel Blowers > Airhank RBG 420 2D2B
Input voltage:
Rated power:
Maximum flow:
Power frequency:
50 Hz
Rated current:
9.7△/5.6Y
Vacuum suction:
-330 mbar
Rated blowing force:
440 mbar
Motor speed:
2800 min-1
In and out caliber:
G1 1/2
Weight:
27 Kg
Noise（about）:
64 dB(A)

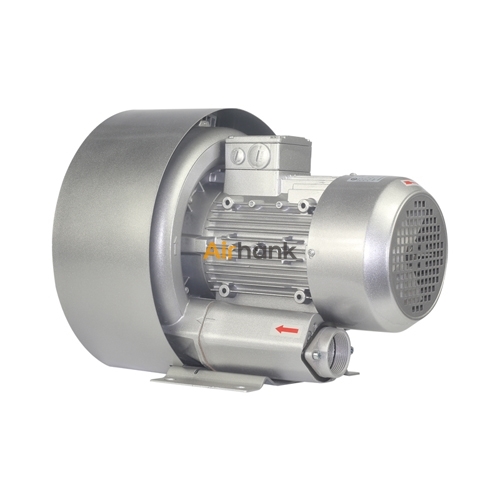

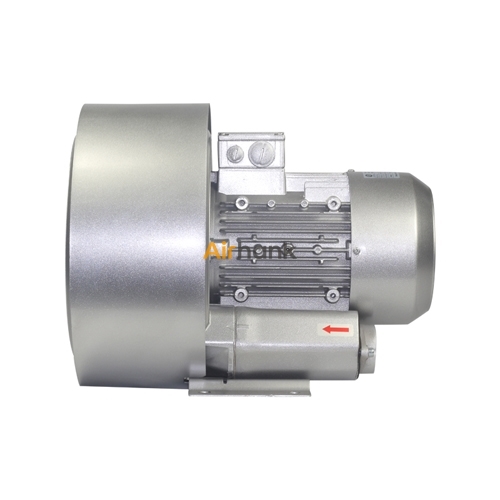

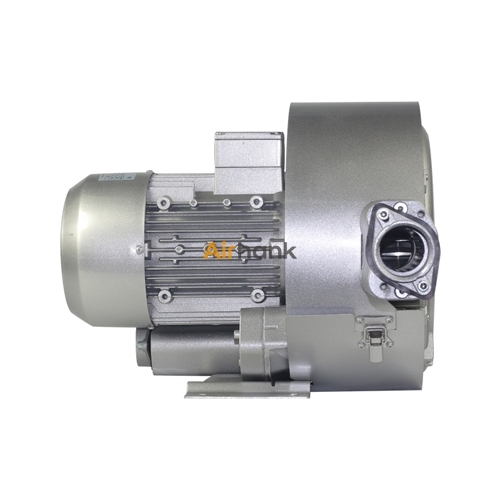

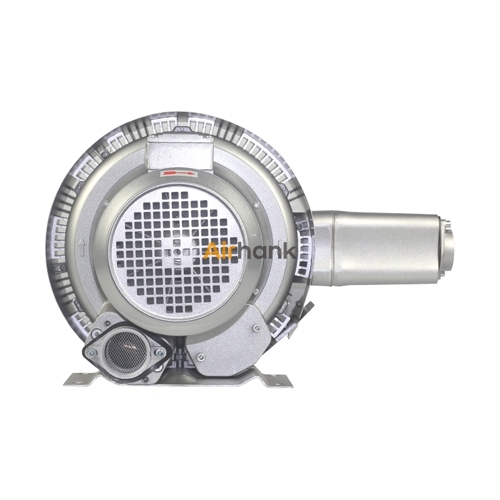

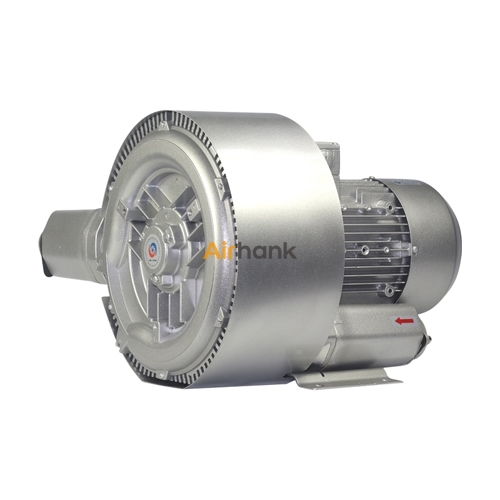

Airhank RBG 420 2D2B
Data download
Data download

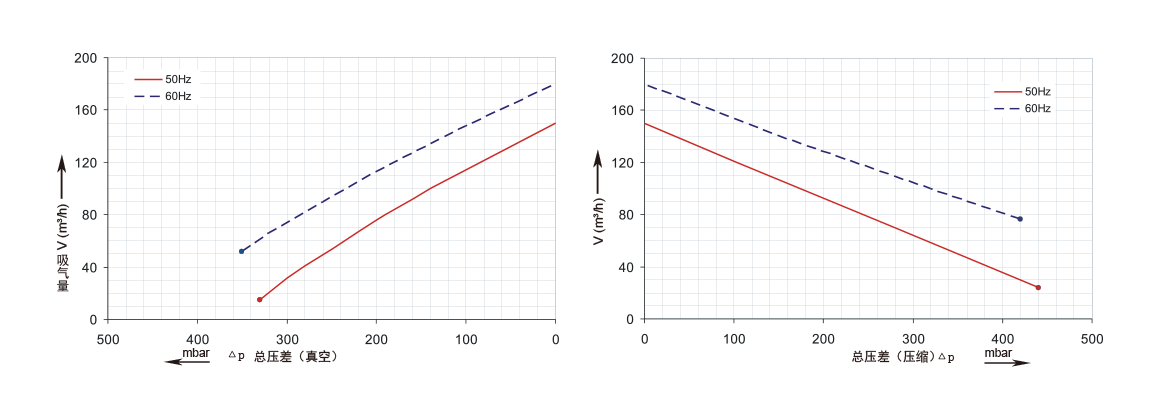

Characteristic curve
Performance data
| Technical parameter | RBG 420 2D2B | |
|---|---|---|
| Maximum flow | m3/h | 150 |
| Vacuum suction | mbar | -330 |
| Rated blowing force | mbar | 440 |
| Frequency | Hz | 50 |
| Voltage | V | △200-240/Y345-415 |
| Current consumption | A | 9.7△/5.6Y |
| Power | kW | 2.2 |
| Motor speed | min-1 | 2800 |
| Weight | Kg | 27 |
| Noise value | dB (A) | 64 |
Technical drawings
