current location：home page > product > Side channel Blowers > RBG Two Stage Side Channel Blowers > Airhank RBG 420 1D5A
Rated power:
Maximum flow:
Input voltage:
Power frequency:
50 Hz
Rated current:
9 A
Vacuum suction:
-260 mbar
Rated blowing force:
260 mbar
Motor speed:
2800 min-1
In and out caliber:
G11/ 2
Weight:
25 Kg
Noise（about）:
66 dB(A)

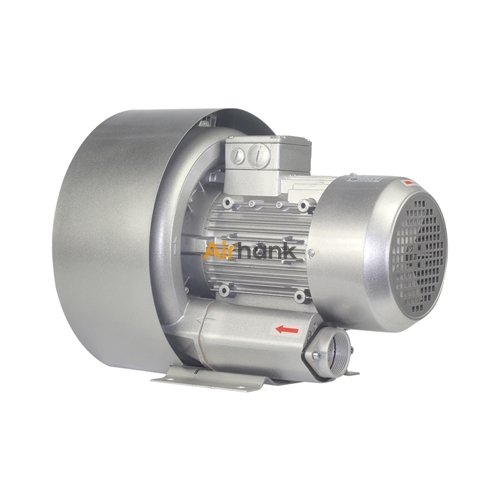

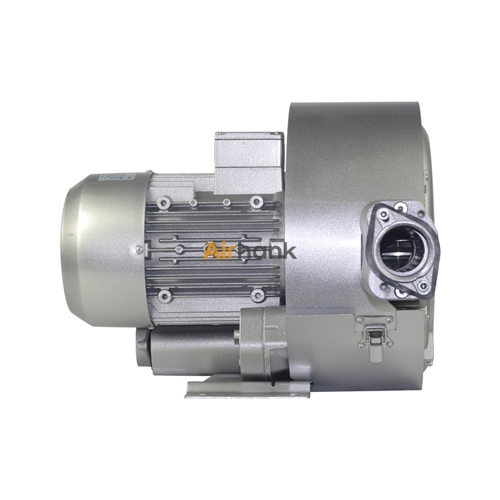

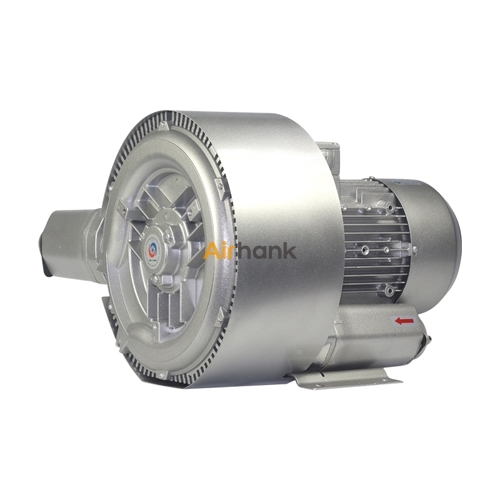

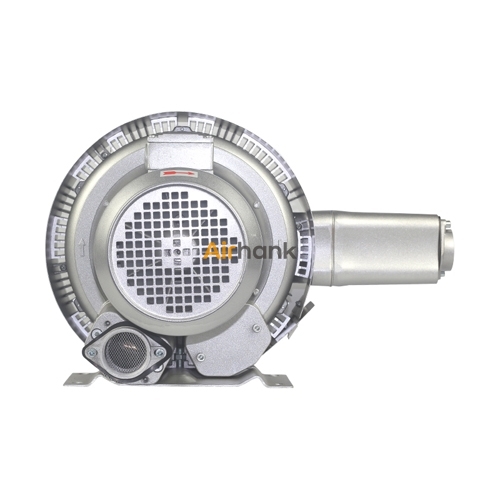

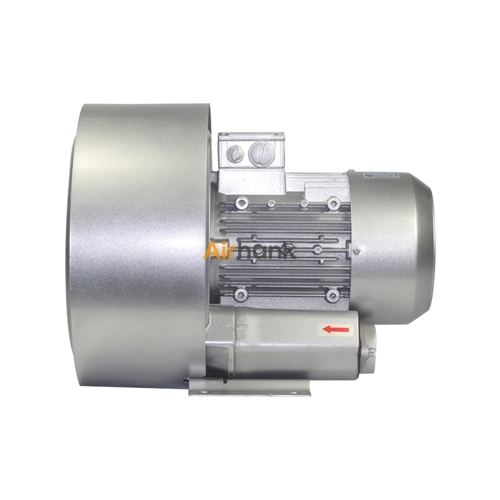

Airhank RBG 420 1D5A
Data download
Data download

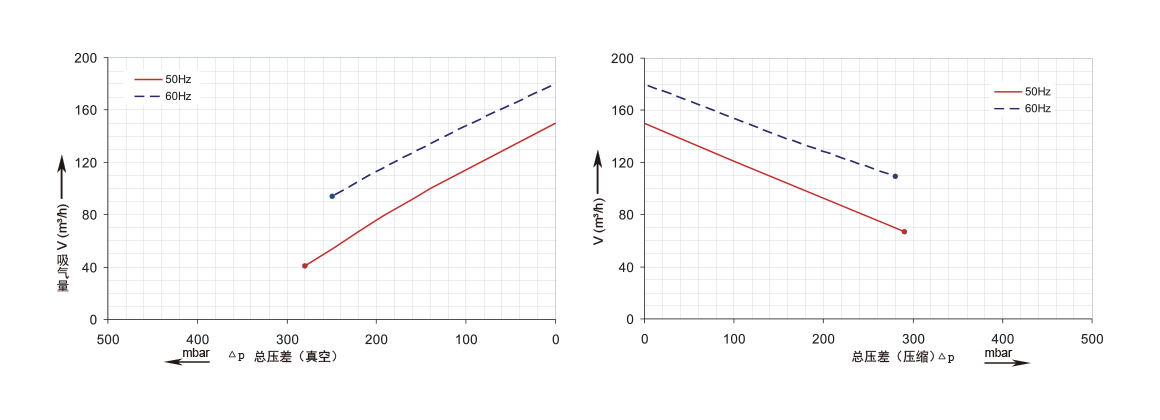

Characteristic curve
Performance data
| Technical parameter | RBG 420 1D5A | |
|---|---|---|
| Maximum flow | m3/h | 150 |
| Vacuum suction | mbar | -260 |
| Rated blowing force | mbar | 260 |
| Frequency | Hz | 50 |
| Voltage | V | 200-240 |
| Current consumption | A | 9 |
| Power | kW | 1.5 |
| Motor speed | min-1 | 2800 |
| Weight | Kg | 25 |
| Noise value | dB (A) | 66 |
Technical drawings
